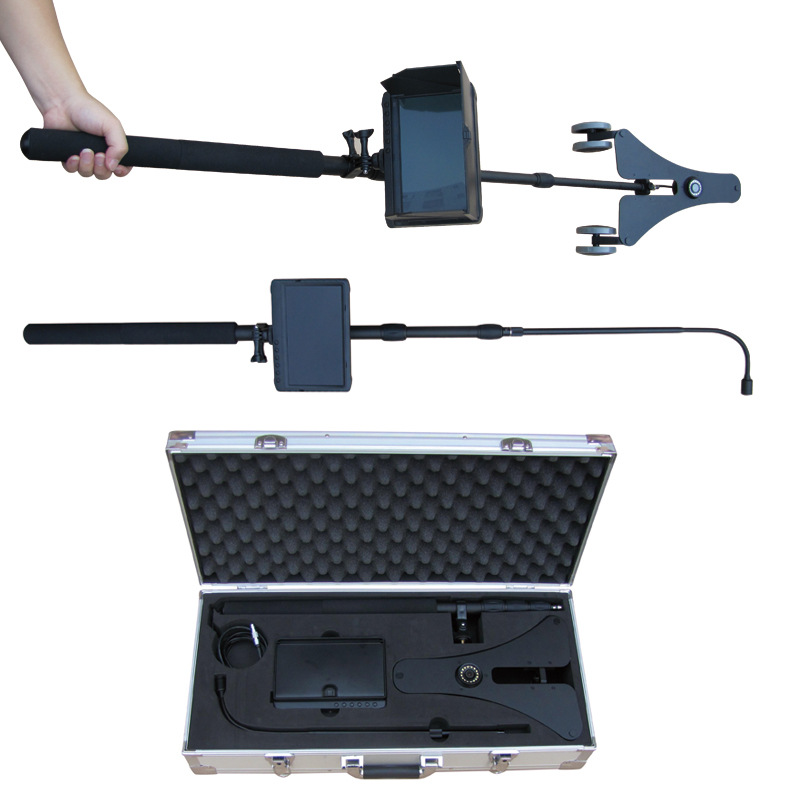

Under Vehicle Inspection Camera

Features

The world‘s first dual digital camera inspection system
1st camera:5.0Mega Pixel16 LED camera with shock-resistant design.
2nd camera:5.0Mega Pixel 6 LED camera Φ18mm with 0.25m flexible pole.
2m Aluminum telescopic pole without joggle
5000mAh li-battery offer 8 hours working
7 inch monitor for istant video feed.

Specifications

Double HD digital camera for checking.

1st camera:5.0Mega 16 LED camera with universal wheel .

2nd camera:5.0 Mega 6 LED camera Φ18mm with 0.25m flexible pole.

Universal wheel with wear-resisting tires.

Reinforced design passed 10000 times crash testing.

7 inch monitor with sunshade.

Support 64GB storage.

Support HDMI video output.

Support H.264 Video Compression Format.

5000mah li-battery, 8 hours working time.

2m Telescopic Survey Pole for all-purpose usage.

Top grade aluminum allay case

Excellent video and photo as iphone .

Digital camera for wheels tray


	Optical Element	1/2.5  CMOS Sensor  SONY
	Optical Total Pixels	5.0 Mega ：3200（H）×1800（V）
	CMOS Sensor Size	5.6mm（H）×3.14mm（V）
	LED lamps	16 pcs LED lamps high light
	Sensitivity	0.08Lux/F1.2
	Lens & View angle	3.6mm F1.2  (H )120 °
	HD Video Output Interface	FPD-LinkⅢ
	Wheels on the tray	Omni-directional wheel
	Dimension & Weight	37 x 46mm, 35g(only camera)
	Cable(5 Cores High-Speed Line)	Diameter：4.0mm   Length：3meters
Mini camera for soft metal pipe	Optical Element	1/3 CMOS Sensor
	Optical Total Pixels	5.0Mega：3200（H）×1800（V）
	CMOS Sensor Size	5.07mm（H）×3.38mm（V）
	LED lamps	6 pcs LED lamps hight light
	Sensitivity	0.2Lux/F1.2
	Lens & View angle	0.5mm F1.2 120 °
	HD Video Output Interface	FPD-LinkⅢ
	Dimension & Weight	18 x 28mm, 10g
	Cable(5Cores High-Speed Line)	Diameter：4mm   Length：3meters
	Flexible pipe lenth	25cm soft metal pipe
Telescopic Pole	Constriction Length:58cm	Unfolded Length:228cm
DVR     7” SCREEN	HD Video Output	HDMI：1920* 1080；1280*720
	Video Storage Pixels（16：9）	HDMI：1920* 1080；1280*720
	Video Compression Format	H.264
	Video Storage	AVI
	HD Digital Video Input Interface	FPD-LinkⅢ
	Photo Format	JPG  5.0 MP ：3200（H）×1800（V）
	Storage External SD card	TF card  1GB-64GB（Optional）
	Operating System	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
	Voltage	DC :7-24V  USB DC:5V
	Current（Monitor mode）	600 mA
	Current（Video mode）	700 mA
	AC Adapter	DC 12V  1A
	Built-in Battery	Li-battery 5000mAh
	Record time	8 hours
	Dimension:	177mm x120mm x 20mm
	Sunshade	One-press open sunshade
	Weight	350 g

For more details, you may contact Worldwide Technologies, Under Vehicle Inspection Camera Dealer in Dehradun Uttarakhand India at www.wtpl.co.in
